Audi Q7: Center Differential

Overview - Center Differential

Overview - Center Differential

1 - O-Ring

  • Replacing
  • Coat with transmission fluid

2 - Plug

  • Tightening specification.
  • For the hole for checking and filling
  • For the transmission fluid inside the transfer case

3 - Center Differential Housing

  • Removing and installing. Refer to → Chapter "Center Differential, Removing and Installing".

4 - Transmission Output Shaft With Splines

  • Removing and installing. Refer to → Chapter "Transmission Output Shaft Seal, Replacing".
  • Replace the seal when replacing the transmission output shaft with splines

5 - Seal

  • For the transmission output shaft with splines
  • Replacing. Refer to → Chapter "Transmission Output Shaft Seal, Replacing".

6 - Dust Ring

  • Cannot be removed without being destroyed

7 - Bolt

  • Tightening specification and sequence. Refer to → Fig. "Center Differential Housing - Tightening Specification and Sequence".
  • Replacing

8 - Ball Bearing

  • For the transmission output shaft with splines
  • Replacing. Refer to → Chapter "Transmission Output Shaft Ball Bearing, Replacing".

9 - Circlip

  • For the transmission output shaft with splines

10 - Circlip

  • For the ball bearing on the transmission output shaft with splines

11 - Ball Bearing

  • For the center differential
  • Replacing. Refer to → Chapter "Center Differential Ball Bearing, Replacing".

12 - Center Differential

Center Differential Housing - Tightening Specification and Sequence

  Note

Replace the bolts that were tightened with an additional turn.

- Tighten the bolts in three steps in the sequence shown:

A39-10200

Center Differential Housing - Tightening Specification and Sequence

Center Differential, Removing and Installing

Removing

  Caution

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts

  • Bolts - Center differential housing
  • The transmission is installed.

  Caution

Risk of damaging the transmission.

Do not start or tow the vehicle when the center differential is removed or when the gear oil has been drained.

  Note

  • General repair instructions. Refer to → Chapter "General Repair Information".
  • Guidelines for clean working conditions. Refer to → Chapter "Guidelines for Clean Working Conditions".

- Remove the driveshaft. Refer to → Rear Final Drive 0D2, 0D3, 0DB; Rep. Gr.39; Driveshaft; Driveshaft, Removing and Installing.

- Drain the gear oil from the transfer case. Refer to → Chapter "Gear Oil, Draining and Filling".

- Remove the bolts from the center differential housing in the following sequence: -6 to 1-.

  Caution

Transmission components could be damaged.

Carefully remove the center differential housing from the transmission toward the rear. Otherwise the center differential could fall out of the transmission.

A39-10200

- Secure the center differential -1- so it does not fall out or remove it toward the rear from the input shaft.

A39-10416

Installing

Install in the reverse order of removal while noting the following:

  Note

Replace the center differential housing O-ring.

If the center differential -1- was removed:

- Position the center differential on the input shaft splines. Rotate the center differential slightly when doing this.

- Make sure the center differential can be turned by hand.

- Install the housing with the transmission output shaft with splines installed and a new O-ring onto the center differential. Rotate the housing slightly if necessary.

- Install the driveshaft. Refer to → Rear Final Drive 0D2, 0D3, 0DB; Rep. Gr.39; Driveshaft; Driveshaft, Removing and Installing.

- Fill with gear oil in transfer case. Refer to → Chapter "Gear Oil, Draining and Filling".

Tightening Specifications

  • Refer to → Fig. "Center Differential Housing - Tightening Specification and Sequence"

Transmission Output Shaft Seal, Replacing

Special tools and workshop equipment required

  • Puller - Crankshaft/Power Steering Seal -T20143/1-
  • Seal Installer - Output Shaft -T40239-
  • Sealing Grease -G 052 128 A1-

  Caution

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts

  • Dust Ring
  • Seal - Transmission output shaft

Procedure

  Note

  • General repair instructions. Refer to → Chapter "General Repair Information".
  • Guidelines for clean working conditions. Refer to → Chapter "Guidelines for Clean Working Conditions".

- Remove the driveshaft. Refer to → Rear Final Drive 0D2, 0D3, 0DB; Rep. Gr.39; Driveshaft; Driveshaft, Removing and Installing.

- Pry off the dust ring -1-.

  Note

The dust ring cannot be removed without destroying it.

A39-10421

- Remove the seal for the transmission output shaft with splines.

- Clean the running and sealing surface.

- Coat outer edge of the seal with gear oil.

A39-10418

- Mount the Seal Installer - Output Shaft - Guide Sleeve 1 -T40239/1-, -1- on the transmission output shaft.

- Fill the space between the sealing/dust lip halfway with Sealing Grease -G 052 128 A1-.

- Install the seal -2- over the guide sleeve -1- and onto the transmission output shaft.

  • Installed position: The open side of the seal faces the transmission housing.

A39-10419

- Install the seal all the way using the Seal Installer - Output Shaft -T40239-, -1-. Do not tilt the seal.

  Note

Remove the Seal Installer - Output Shaft - Guide Sleeve 1 -T40239/1- from the seal carefully so that the sealing lip does not fold over.

A39-10420

- Install a new dust ring -1-.

- Install the driveshaft. Refer to → Rear Final Drive 0D2, 0D3, 0DB; Rep. Gr.39; Driveshaft; Driveshaft, Removing and Installing.

A39-10421

Transmission Output Shaft Ball Bearing, Replacing

Special tools and workshop equipment required

  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Rod -VW409-
  • Press Piece - Multiple Use -VW412-
  • Press Piece - 60mm -VW415A-
  • Press Piece - Front Control Arm -2040-

  Caution

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts

  • Seal - Transmission output shaft
  • Ball Bearing - Transmission output shaft

Procedure

- Remove the center differential housing. Refer to → Chapter "Center Differential, Removing and Installing".

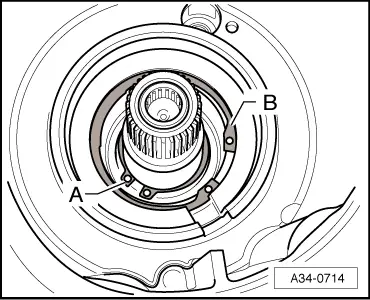

- Remove the locking ring -A- on the transmission output shaft with splines and the ball bearing circlip -B-.

A34-0714

- Remove the transmission output shaft from the center differential housing using the Press Piece - Rod -VW409-.

A39-10203

- Pry out the seal.

  Note

To protect the housing lay for example an extractor lever -A- underneath.

A39-0377

- Remove the transmission output shaft ball bearing with splines.

A34-10455

- Install the transmission output shaft ball bearing with splines.

  • The shoulder on the Press Piece - 60mm -VW415A--arrow- faces the Press Piece - Multiple Use -VW412-.

A34-10456

- Install the ball bearing circlip -B-.

  Note

Ignore item -A-.

A34-0714

- Install the transmission output shaft into the center differential housing using the Press Piece - Multiple Use -VW412-.

A39-10204

- Install the locking ring -arrow- into the groove in the transmission output shaft.

- Install the center differential housing. Refer to → Chapter "Center Differential, Removing and Installing".

- Install the seal for the transmission output shaft with splines. Refer to → Chapter "Transmission Output Shaft Seal, Replacing".

- Fill with gear oil in transfer case. Refer to → Chapter "Gear Oil, Draining and Filling, Transfer Case".

A39-0378

Center Differential Ball Bearing, Replacing

Special tools and workshop equipment required

  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Multiple Use -VW412-
  • Press Piece - Bushing - 50mm Diameter -VW432-
  • Bearing Installer - Carrier Bearing -3350-
  • Splitter VAS251 411 -VAS251411-

  Caution

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts

  • Bolts - Center differential
  • Ball Bearing - Center differential

Procedure

- Remove the center differential housing. Refer to → Chapter "Center Differential, Removing and Installing".

- Remove the center differential -1- from the output shaft.

A39-10416

- Removing the ball bearing from the center differential

A - Splitter VAS251 411 -VAS251411-

  • The Press Piece - Bushing - 50mm Diameter -VW432- faces the ball bearing.

A39-10343

- Installing the ball bearing onto the center differential

A39-10345
