Audi Q7: Front Door Trim Panel, Removing and Installing

Audi Q7 (4M) 2016-2024 Workshop Manual / Body / Body  Interior / Interior Trim / Front Door Trim Panel, Removing and Installing

Special tools and workshop equipment required

  • Wedge Set -T10383-

Removing

- Switch off the ignition.

- Unclip the trim -1- using the -T10383/1--arrow-, disengage the trim at the door trim panel and remove it.

A70-12225

- Remove the bolts -arrows-.

A70-12292

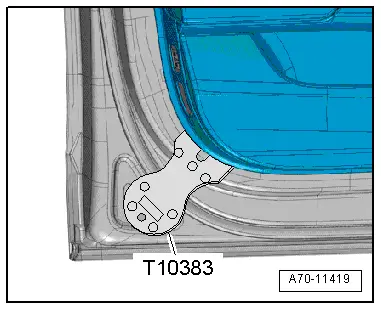

- Using the -T10383- unclip at lower rear in the radius beginning from the door by inserting the wedge between door trim and door in the area of the clip.

A70-11419

Unclip the remaining clips -2- along the door trim panel from the door, the mark shows the position of the clips.

- Pull the door trim panel -1- slightly off the door all the way around.

  • The clips must not be left in the inside the door.

- Press the door trim panel upward out of the clip -3- and disengage from the door on the window shaft -arrows-.

A70-12183

- Unclip the cable -3- carefully from the interior door mechanism -2-.

- Swivel the interior door mechanism cable toward the inside -arrow-.

- Disengage the ends of the cable -1- from the inside door release mechanism.

A70-11431

- Disconnect the connectors -1 and 2- from the door control module by pressing the release.

- Remove the door trim.

A70-12301

Installing

Install in reverse order of removal and note the following:

- Position the door trim on the window recess and press it down firmly.

- Carefully position the door trim panel clips -2- all around the door and press the door trim onto the door -1- until it engages audibly on the mounting points in direction of -arrow-.

A70-11933

- Engage the door trim -1- in the clamp -2-, to do so push the door trim on the door at the indicated point in direction of -arrows-.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Front Door Trim Panel".

A70-12017

Front Pull Handle, Removing and Installing

Special tools and workshop equipment required

  • Wedge Set -T10383-

Removing

- Remove the door trim panel. Refer to → Chapter "Front Door Trim Panel, Removing and Installing".

- Place the trim panel on a soft surface.

- Remove the insulation mat.

- Disconnect the connectors at the rear of the door trim panel.

- Remove the bolts -arrows-.

- Remove the pull handle with the armrest -1- from the door trim panel.

A70-12184

- Unclip the switch mount -1- from the pull handle with the armrest -2- using the -T10383/1--arrow- and remove it.

A70-12293

Installing

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Front Door Trim Panel".
