Audi Q7: Rear Door Ambient Lighting Lamp, Removing and Installing

Audi Q7 (4M) 2016-2024 Workshop Manual / Electrical System / Electrical Equipment / Interior Lights, Switches / Rear Door Ambient Lighting Lamp, Removing and Installing

Left Rear Door Contour Illumination Lamp, Removing and Installing

Removing

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

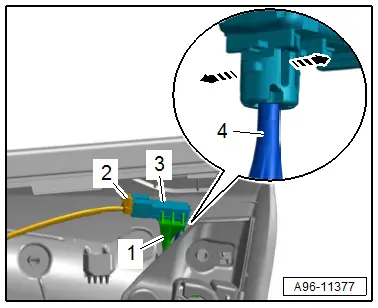

- Disengage the upper insulation.

- Disconnect the connector -2-.

- Dismount the lamp -3- from the mount -1-.

- Release the catches in direction of -arrows- and remove the lamps from the lighting strip -4-.

A96-11377

Installing

Install in reverse order of removal.

Rear Door Ambient Lighting Lamp 1, Removing and Installing

Removing

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

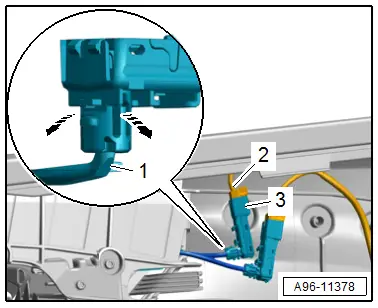

- Disengage the upper insulation.

- Disconnect the connector -2-.

- Release the catches -arrows- and remove the lamps -3- from the lighting strip -1-.

A96-11378

Installing

Install in reverse order of removal.

Rear Door Ambient Illumination Lamp 2, Removing and Installing

Removing

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

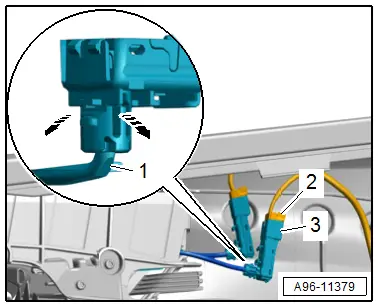

- Disengage the upper insulation.

- Disconnect the connector -2-.

- Release the catches -arrows- and remove the lamps -3- from the lighting strip -1-.

A96-11379

Installing

Install in reverse order of removal.

Rear Door Storage Compartment Illumination Bulb, Removing and Installing

Rear Door Storage Compartment Illumination Bulb, Removing and Installing

Removing

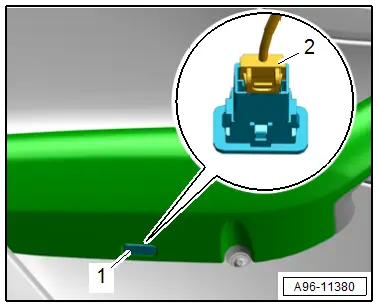

- Pry out the door storage compartment illumination bulb -1- from the armrest.

- Disconnect the connector -2-.

A96-11380

Installing

Install in the reverse order of removal while noting the following:

  • If one of the LEDs is faulty, then the complete door storage compartment illumination bulb must be replaced.

Left and Right Rear Door Storage Compartment Illumination Control Module -J1041-/-J1042-, Removing and Installing

Removing

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Disengage and remove the insulation.

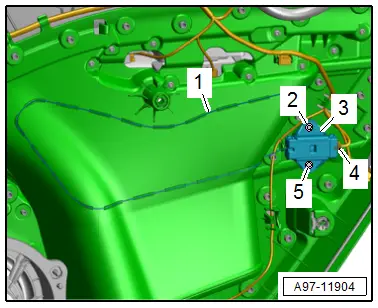

- Free up the antenna -1-.

- Disconnect the connector -4-.

- Pry up the lock washers -2 and 5-.

- Remove the control module -3-.

A97-11904

Installing

Install in reverse order of removal.
