Audi Q7: Vehicle Diagnosis, Testing and Information Systems
WARNING
- During road tests using a vehicle diagnostic and
information system, there is the hazard of extreme to
lethal injuries!
- If vehicle diagnostic and information system is
deposited in the action area of an airbag during a road
test, here is the hazard of extreme to lethal injuries
in the event the airbag deploys!
- During road tests, have a person sitting in the rear
seat to operate the vehicle diagnostic and information
system.
Audi TT and Audi R8
WARNING
- During road tests using a Vehicle Diagnostic Tester,
there is the hazard of extreme to lethal injuries!
- If vehicle diagnostic and information system is
deposited in the action area of an airbag during a road
test, here is the hazard of extreme to lethal injuries
in the event the airbag deploys!
- During road tests, have a person sitting in the
front passenger seat in the rearmost position to operate
the Vehicle Diagnostic Tester.

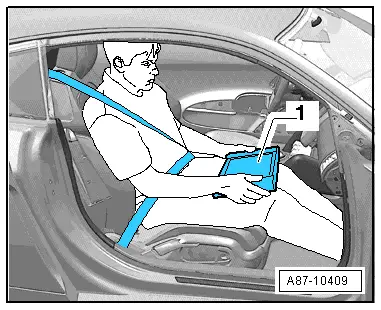

- The Vehicle Diagnostic Tester-1-
must lie flat on the passenger's legs and be operated by
that person, as shown in the illustration.
- Connect the Vehicle Diagnostic Tester. Refer to
→ Chapter "Vehicle Diagnostic Tester, Connecting".

Vehicle Diagnostic Tester, Connecting
Special tools and workshop equipment
required
- Vehicle Diagnostic Tester and diagnostic cable
Procedure
- Engage the parking brake or operate the electromechanical
parking brake.
- Shift the shifter lever into neutral or place the selector
lever in the "P" position.

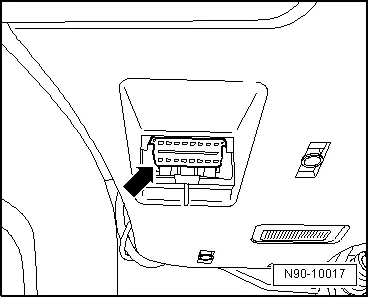

- Turn off the ignition and connect the Vehicle Diagnostic
Tester to the Data Link Connector (DLC) with the diagnostic
cable -arrow-.
- When using the Remote Diagnosis Head -VAS5054A- or the
Diagnosis Interface -VAS5055- pay attention to the Operating
Instructions.
- Turn on the ignition.
- Turn off all electrical consumers.
Note
If a error message appears on the screen of the Vehicle
Diagnostic Tester. Refer to the Operating Instructions.
