Audi Q7: Left and Right Rear Bass Speaker -R15-/-R17-, Removing and Installing

Audi Q7 (4M) 2016-2024 Workshop Manual / Electrical System / Communication / Soand System / Left and Right Rear Bass Speaker -R15-/-R17-, Removing and Installing

Left and Right Rear Bass Speaker -R15-/-R17-, Removing and Installing

The Left Rear Bass Speaker -R15-/Right Rear Bass Speaker -R17- are located at the bottom of the rear doors.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Release and disconnect the connector -2- from the Left Rear Bass Speaker -R15--1-.

- Remove the bolts -3-.

- Remove the Left Rear Bass Speaker -R15--1-.

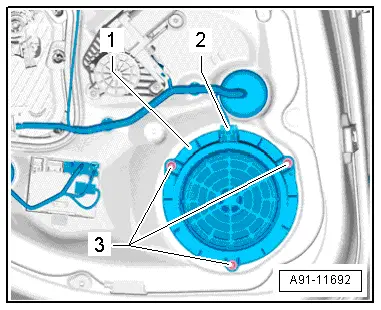

A91-11692

Installing

- Install in reverse order of removal.

Tightening Specifications

  • Refer to → Chapter "Component Location Overview - Soand System, Speaker, Standard, BOSE"

Left and Right Rear Bass Speaker -R15-/-R17-, Removing and Installing, Bang & Olufsen

The Left Rear Bass Speaker -R15-/Right Rear Bass Speaker -R17- are located at the bottom of the rear doors.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Release and disconnect the connector -2- from the Left Rear Bass Speaker -R15--1-.

- Remove the bolts -arrows-.

- Remove the Left Rear Bass Speaker -R15--1-.

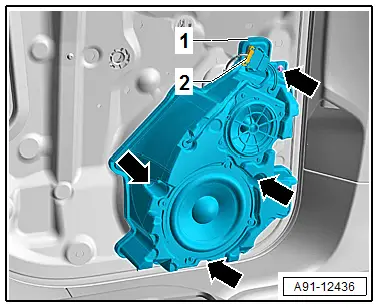

A91-12436

Installing

- Install in reverse order of removal.

Tightening Specifications

  • Refer to → Chapter "Component Location Overview - Soand System, Speaker, Bang & Olufsen"

Left and Right Front Bass Speaker -R21-/-R23-, Removing and Installing

Left and Right Front Bass Speaker -R21-/-R23-, Removing and Installing

The Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23- are located at the bottom of the front doors.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the front door trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Front Door Trim Panel, Removing and Installing.

- Release and disconnect the connector from the Left Front Bass Speaker -R21--1-.

- Remove the bolts -arrows-.

- Remove the Left Front Bass Speaker -R21--1-.

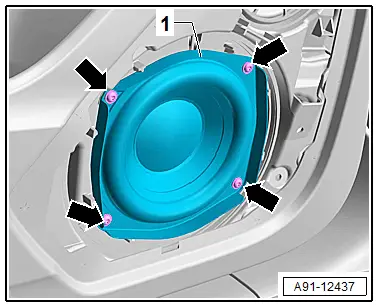

A91-12437

Installing

- Install in reverse order of removal.

Tightening Specifications

  • Refer to → Chapter "Component Location Overview - Soand System, Speaker, Standard, BOSE"

Left and Right Front Bass Speaker -R21-/-R23-, Removing and Installing, BOSE/Bang & Olufsen

The Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23- are located at the bottom of the front doors.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the front door trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Front Door Trim Panel, Removing and Installing.

- Release and disconnect the connector -3- from the Left Front Bass Speaker -R21--2-.

- Remove the 10 screws -1-.

- Remove the Left Front Bass Speaker -R21--2-.

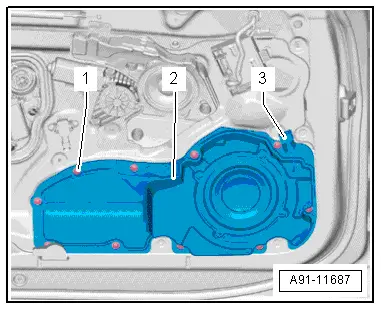

A91-11687

Installing

- Install in reverse order of removal.

Tightening Specifications

  • Refer to → Chapter "Component Location Overview - Soand System, Speaker, Standard, BOSE"
  • Refer to → Chapter "Component Location Overview - Soand System, Speaker, Bang & Olufsen"
