Audi Q7: Special Tools

Special tools and workshop equipment required

  • Shock Absorber Set -T10001-

W00-11171

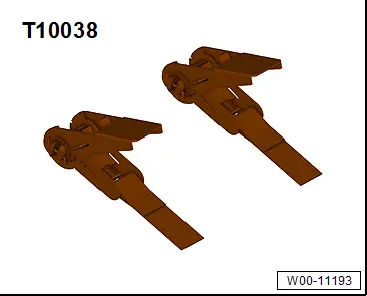

  • Tensioning Strap -T10038-

W00-11193

  • Tripod Joint Tool -T10065-

W00-1070

  • Engine/Gearbox Jack Adapter - Wheel Hub Support -T10149-

W00-11475

  • Air Spring Strut Adapter -T10157-

W00-10083

  • Hydraulic Press - Bushing Assembly Tool Kit -T10230-

W00-11692

  • Socket AF 24 mm -T10361A-

W00-11509

  • Ball Joint Removal Tool -T10444-

W00-10888

  • Triple Roller Assembly Tool -T40018-

W00-1097

  • Puller - Differential Bearing -T40032-

W00-1180

  • Gearbox Support -T40173-

W00-10596

  • Triple Roller Assembly Tool -T40236-

W00-10863

  • Ball Joint Splitter -T40277-

W00-11043

  • Torque Wrench 1331 5-50Nm -VAG1331-

W00-11166

  • Torque Wrench 1332 40-200Nm -VAG1332-

W00-11165

  • Torque Wrench 1332 Insert - Ring Wrench - 21mm -VAG1332/7-

W00-11476

  • Torque Wrench 1410 -VAG1410-

W00-11174

  • Torque Wrench 80-400Nm -VAG1576-

W00-0506

  • Clampling Pliers -VAG1682A-

W00-11681

  • Spring Compressor Kit -VAG1752-

W00-0500

  • Spring Compressor Kit - Spring Retainer w/Inserts -VAG1752/6-

W00-11700

  • Torque Wrench 1783 - 2-10Nm -VAG1783- for vehicles with air suspension.

W00-11189

  • Torque Wrench 1783 - Open Jaw - 10mm -VAG1783/1- for vehicles with air suspension.

W00-10097

  • Locking Pliers -VAS6199-

W00-11696

  • Air Suspension Strut Charger -VAS6231-

W00-10258

  • Engine and Gearbox Jack -VAS6931-

W00-11607

  • Press Plate -VW402-

W00-11418

  • Press Piece - Rod -VW408A-

W00-11359

  • Press Piece - Rod -VW411-

W00-11420

  • Press Piece - Multiple Use -VW412-

W00-11421

  • Press Piece - 37mm -VW416B-

W00-11439

  • Press Piece - Multiple Use -VW447H-

W00-11412

  • Bearing Installer - Ball Joint/Bushing/Bearing 2 -VW459/2-

W00-1263

  • Press Piece - 42mm -VW516-

W00-11438

  • CV Joint Press Sleeve -VW522-

W00-0152

  • Slide Hammer Set -VW771-

W00-11119

  • Press Block -40-204A-

W00-0115

  • Pry Lever -80-200-

W00-11156

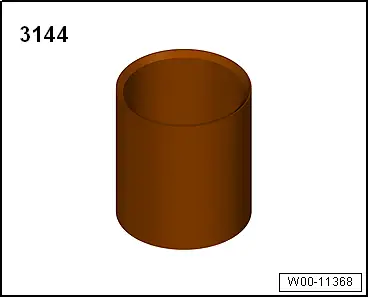

  • Bearing Installer - Wheel Bearing -3144-

W00-11368

  • Press Piece - Reverse Gear Syncro -3296-

W00-11133

  • Subframe Bushing Tool Kit -3301-

W00-11427

  • Bearing Installer - Multiple Use -3348-

W00-11337

  • Spreader Tool -3424-
  • Not illustrated
  • Locating Pins -T40327-
  • Torque Wrench 1331 Insert - Ring Wrench - 16mm -VAG1331/12-
  • Pneumatic Hydraulic Press -VAS6654-
  • Splitter VAS251405 -VAS251405-
  • Splitter VAS251403 -VAS251403-
  • Ball Joint Splitter -VAS251805-
  • Puller Set VAS701003 -VAS701003-
  • Puller Set - Clamping Sleeve -VAS701003/1-
  • Puller Set - Threaded Spindle -VAS701003/2-
  • Puller Set - Clamping Handle -VAS701003/4-
  • Puller Set - Special Ring Spanner AF36 -VAS701003/5-
  • Puller Set - Clamping Pliers, Diameter 66-70 mm -VAS701003/7-

W00-11688
