Audi Q7: Wheel Bolts

Wheel Bolt Types

  Note

Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.

Standard, One-Piece Wheel Bolt

A44-10262

Two-piece wheel bolt, short turnable spherical calotte, primarily for S models.

A44-10263

Two-piece wheel bolt, short turnable spherical calotte, primarily for S models.

A44-10264

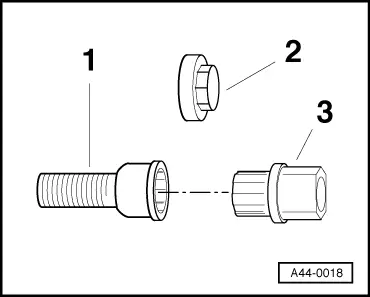

Anti-Theft Wheel Bolts

A44-0018

1 - Anti-theft wheel bolts

2 - Cap

3 - Wheel bolt adapter

Master Sets for Anti-Theft Wheel Bolts

Special tools and workshop equipment required

  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Wheel Lock Set -T10101-
  • Wheel Lock Set -T10101A-
  • Wheel Lock Set -T40004-
  • Wheel Lock Set -T40073-
