Audi Q7: Overview - Soand System

The following systems are offered:

  • 8RM - Basic soand system.
  • 9VD - Standard soand system.
  • 9VS - Premium soand system, BOSE.
  • 8RF - Advanced soand system, Bang & Olufsen.

8RM - Basic Soand System

  • One speaker in the left and right front doors
  • One speaker on the left and right side of the instrument panel
  • One speaker in the left and right B-pillars
  • One loud speaker in the left and right rear doors BOSE

9VD - Standard Soand System

  • One speaker in the left and right front doors
  • One loud speaker on the left side, center and right side of the instrument panel
  • One speaker in the left and right B-pillars
  • One loud speaker in the left and right rear doors
  • Subwoofer -R211- in the luggage compartment

Overview - Soand System

1 - Information Electronics Control Module 1 -J794- in the glove compartment

2 - Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- in the instrument panel

3 - Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23- at in the front doors at the bottom

4 - Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16- inside the B-pillars

5 - Left Rear Bass Speaker -R15-/Right Rear Bass Speaker -R17- at bottom in the rear doors

6 - Center Speaker -R208- in the instrument panel center

7 - Subwoofer -R211- in the luggage compartment, 9VD

8 - MOST Bus

9VS - Premium Soand System, BOSE

  • Two speakers in the left and right A-pillars
  • Two speakers in the left and right front doors
  • One speaker on the left and right side of the instrument panel
  • Two speakers in the center of the instrument panel
  • One speaker in the left and right B-pillars
  • One loud speaker in the left and right rear doors
  • One speaker in the right and left rear of the roof
  • Subwoofer -R211- in the luggage compartment
  • Digital Soand System Control Module -J525- in the luggage compartment

There is a soand system with ANC EP1 and without ANC EP0.

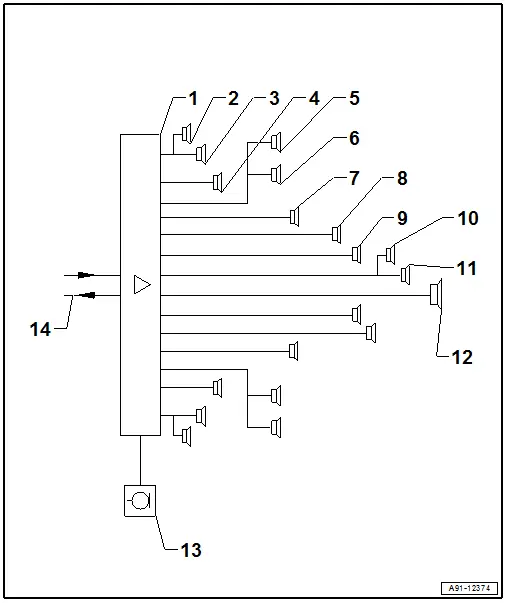

9VS - Premium Soand System, BOSE

1 - Digital Soand System Control Module -J525- in the luggage compartment

2 - Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- in the upper A-pillars (at height of the exterior rearview mirror)

3 - Left Front Midrange Speaker -R103-/Right Front Midrange Speaker -R104- in the front doors

4 - Left Front Speaker -R2-/Right Front Speaker -R3- in the left and right of the instrument panel

5 - Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16- inside the B-pillars

6 - Left Rear Bass Speaker -R15-/Right Rear Bass Speaker -R17- at bottom in the rear doors

7 - Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23- at in the front doors at the bottom

8 - Left Front Treble Speaker 2 -R220-/Right Front Treble Speaker 2 -R221- in the A-pillars at the top

9 - Left Effects Speaker -R209-/Right Effects Speaker -R210- in the rear of the roof

10 - Center Speaker -R208- in the instrument panel center

11 - Center Speaker 2 - R219- in the center of the instrument panel

12 - Subwoofer -R211- in the luggage compartment

13 - Interior Microphone -R74-, Microphone Unit in Front Roof Module -R164- in the Front Interior Lamp -W1-

     - ANC microphones inside the headliner

14 - MOST Bus

8RF - Advanced Soand System, Bang & Olufsen

  • Two speakers in the left and right A-pillars
  • Two speakers in the left and right front doors
  • One speaker on the left and right side of the instrument panel
  • Two speakers in the center of the instrument panel
  • One speaker in the left and right B-pillars
  • Two speakers in the left and right rear doors
  • Two speakers in the right and left rear of the roof
  • Subwoofer -R211- in the luggage compartment
  • Digital Soand System Control Module -J525- in the luggage compartment

There is a soand system with ANC EP1 and without ANC EP0.

8RF - Advanced Soand System, Bang & Olufsen

1 - Left Front Treble Speaker 2 -R220- in the A-Pillar at the Top

2 - Left Front Midrange Speaker 2 -R276- in the Upper A-Pillar (at height of the exterior rearview mirror)

3 - Left Front Bass Speaker -R21- in the bottom of the front door

4 - Left Front Midrange Speaker -R103- in the bottom of the front door

5 - Left Rear Treble Speaker -R14- in the B-Pillar

6 - Left Rear Bass Speaker -R15- in bottom of the rear door

7 - Left Rear Midrange Speaker -R105- in rear door at the top

8 - Left Effects Speaker -R209- in the left rear of the roof

9 - Left Rear Treble Speaker 2 -R217- in the left rear of the roof

10 - Left Front Treble Speaker -R20- in the instrument panel on the left side

11 - Left Front Treble Speaker Motor -V344-

12 - Center Speaker -R208- in the instrument panel center

13 - Center Speaker 2 - R219- in the center of the instrument panel

14 - Right Front Treble Speaker -R22- in right instrument panel

15 - Right Front Treble Speaker Motor -V345-

16 - Subwoofer -R211- in the luggage compartment

17 - Right Rear Treble Speaker 2 -R218- in the right rear of the roof

18 - Right Effects Speaker -R210- in the right rear of the roof

19 - Right Rear Midrange Speaker -R106- in rear door at the top

20 - Right Rear Bass Speaker -R17- in the bottom of the rear door

21 - Right Rear Treble Speaker -R16- in the B-Pillar

22 - Right Front Midrange Speaker -R104- in center of the front door

23 - Right Front Bass Speaker -R23- in the bottom of the front door

24 - Right Front Midrange Speaker 2 -R277- in the upper A-pillar

25 - Right Front Treble Speaker 2 -R221- in upper A-pillar

26 - Interior Microphone -R74-, Microphone Unit in Front Roof Module -R164- in the Front Interior Lamp -W1-

     - ANC microphones inside the headliner

27 - Digital Soand System Control Module -J525- in the luggage compartment

28 - MOST Bus

Notes on MOST Bus

The optical Data Bus "MOST Bus" is used in addition to the CAN Bus.

A fiber-optic cable is used as a "connecting cable". Fiber optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber optic cable if possible.

The front surface of the connectors must not be contaminated.

If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps -VAS6223/9-.

When routing fiber optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber optic cables.

Repairing fiber optic cables. Refer to → Electrical Equipment; Rep. Gr.97; Fiber-Optic Cable.

W00-11495
