Audi Q7: Rear Midrange Speaker, Removing and Installing

Audi Q7 (4M) 2016-2024 Workshop Manual / Electrical System / Communication / Soand System / Rear Midrange Speaker, Removing and Installing

The Left Rear Midrange Speaker -R105-/Right Rear Midrange Speaker -R106- are located in the rear doors. They are components of the Left Rear Bass Speaker -R15-/Right Rear Bass Speaker -R17-.

Removing and installing. Refer to → Chapter "Left and Right Rear Bass Speaker -R15-/-R17-, Removing and Installing, Bang & Olufsen".

Front Midrange Speaker, Removing and Installing

Left and Right Front Midrange Speaker -R103-/-R104-, Removing and Installing, BOSE

The Left Front Midrange Speaker -R103-/Right Front Midrange Speaker -R104- are located at the bottom in the front doors. They are components of the Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23-.

Removing and installing. Refer to → Chapter "Left and Right Front Bass Speaker -R21-/-R23-, Removing and Installing, BOSE/Bang & Olufsen".

Left and Right Front Midrange Speaker -R103-/-R104-, Removing and Installing, Bang & Olufsen

The Left Front Midrange Speaker -R103-/Right Front Midrange Speaker -R104- are located at the bottom in the front doors. They are components of the Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23-.

Removing and installing. Refer to → Chapter "Left and Right Front Bass Speaker -R21-/-R23-, Removing and Installing, BOSE/Bang & Olufsen".

Front Midrange Speaker 2, Removing and Installing

Left and Right Front Midrange Speaker 2 -R276-/-R277-, Removing and Installing, Band & Olufsen

The Left Front Midrange Speaker 2 -R276-/Right Front Midrange Speaker 2 -R277- are located in the upper A-pillars (at height of the exterior rearview mirror).

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the A-pillar trim panel. Refer to → Body Interior; Rep. Gr.70; Vehicle Interior Trim Panels; A-Pillar Trim Panel, Removing and Installing.

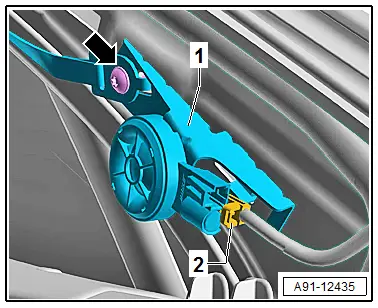

- Release and disconnect the connector -2- from the Left Front Midrange Speaker 2 -R276--1-.

- Remove the bolt -arrow-.

- Remove the Left Front Midrange Speaker 2 -R276--2-.

A91-12435

Installing

- Install in reverse order of removal.

Tightening Specifications

  • Refer to → Chapter "Component Location Overview - Soand System, Speaker, Bang & Olufsen"
